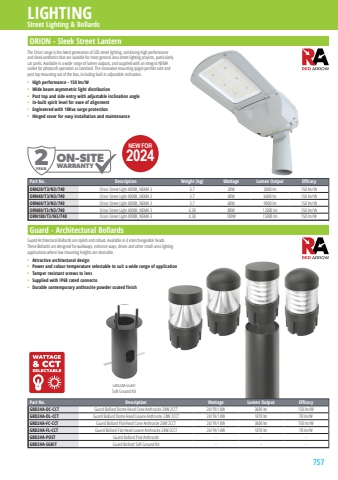

757LIGHTINGStreet Lighting & BollardsGRD24A-SGKIT Soft Ground Kit2YEARON-SITEWARRANTYORION - Sleek Street LanternThe Orion range is the latest generation of LED street lighting, combining high performance and sleek aesthetics that are suitable for most general area street lighting projects, particularly car parks. Available in a wide range of lumen outputs, and supplied with an integral NEMA socket for photocell operation as standard. The innovative mounting spigot permits side and post top mounting out of the box, including built in adjustable inclination.%u2022 High performance - 150 lm/W%u2022 Wide beam asymmetric light distribution%u2022 Post top and side entry with adjustable inclination angle%u2022 In-built spirit level for ease of alignment%u2022 Engineered with 10Kva surge protection%u2022 Hinged cover for easy installation and maintenancePart No. Description Weight (kg) Wattage Lumen Output EfficacyORN20/T3/N3/740 Orion Street Light 4000K, NEMA 3 3.7 20W 3000 lm 150 lm/WORN40/T3/N3/740 Orion Street Light 4000K, NEMA 3 3.7 40W 6000 lm 150 lm/WORN60/T3/N3/740 Orion Street Light 4000K, NEMA 3 3.7 60W 9000 lm 150 lm/WORN80/T3/N3/740 Orion Street Light 4000K, NEMA 3 4.38 80W 12000 lm 150 lm/WORN100/T3/N3/740 Orion Street Light 4000K, NEMA 3 4.38 100W 15000 lm 150 lm/WGuard - Architectural BollardsGuard Architectural Bollards are stylish and robust. Available in 4 interchangeable heads. These Bollards are designed for walkways, entrance ways, drives and other small-area lighting applications where low mounting heights are desirable.%u2022 Attractive architectural design%u2022 Power and colour temperature selectable to suit a wide range of application%u2022 Tamper resistant screws to lens%u2022 Supplied with IP68 rated connecto%u2022 Durable contemporary anthracite powder coated finishPart No. Description Wattage Lumen Output EfficacyGRD24A-DC-CCT Guard Bollard Dome Head Cone Anthracite 24W 2CCT 24/19/14W 3600 lm 150 lm/WGRD24A-DL-CCT Guard Bollard Dome Head Louvre Anthracite 24W 2CCT 24/19/14W 1870 lm 78 lm/WGRD24A-FC-CCT Guard Bollard Flat Head Cone Anthracite 24W 2CCT 24/19/14W 3600 lm 150 lm/WGRD24A-FL-CCT Guard Bollard Flat Head Louvre Anthracite 24W 2CCT 24/19/14W 1870 lm 78 lm/WGRD24A-POST Guard Bollard Post Anthracite - - -GRD24A-SGKIT Guard Bollard Soft Ground Kit - - -NEW FOR2024
