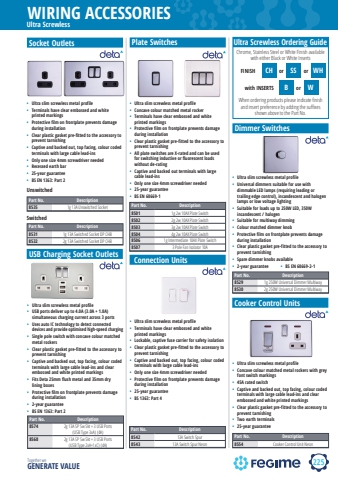

Page 225 - Demo

225WIRING ACCESSORIESTogether we GENERATE VALUESocket OutletsPart No. Description8535 1g 13A Unswitched Socket%u2022 Ultra slim screwless metal profile%u2022 Terminals have clear embossed and white printed markings%u2022 Protective film on frontplate prevents damage during installation%u2022 Clear plastic gasket pre-fitted to the accessory to prevent tarnishing%u2022 Captive and backed out, top facing, colour coded terminals with large cable lead-ins%u2022 Only one size 4mm screwdriver needed%u2022 Recessed earth bar%u2022 25-year guarantee%u2022 BS EN 1363: Part 2Ultra ScrewlessPart No. Description8531 1g 13A Switched Socket DP CHB8532 2g 13A Switched Socket DP CHBUSB Charging Socket OutletsPart No. Description8574 2g 13A SP Sw Skt + 3 USB Ports (USB Type 3xA) (4A) 8568 2g 13A SP Sw Skt + 3 USB Ports (USB Type 2xA+1xC) (4A)%u2022 Ultra slim screwless metal profile%u2022 USB ports deliver up to 4.0A (3.0A + 1.0A) simultaneous charging current across 3 ports%u2022 Uses auto IC technology to detect connected devices and provide optimised high-speed charging%u2022 Single pole switch with concave colour matched metal rockers%u2022 Clear plastic gasket pre-fitted to the accessory to prevent tarnishing%u2022 Captive and backed out, top facing, colour coded terminals with large cable lead-ins and clear embossed and white printed markings%u2022 Fits Deta 25mm flush metal and 35mm dry lining boxes%u2022 Protective film on frontplate prevents damage during installation%u2022 2-year guarantee%u2022 BS EN 1363: Part 2Plate SwitchesPart No. Description8501 1g 2w 10AX Plate Switch8502 2g 2w 10AX Plate Switch8503 3g 2w 10AX Plate Switch8504 4g 2w 10AX Plate Switch8506 1g Intermediate 10AX Plate Switch8507 3 Pole Fan Isolator 10A%u2022 Ultra slim screwless metal profile%u2022 Concave colour matched metal rocker%u2022 Terminals have clear embossed and white printed markings%u2022 Protective film on frontplate prevents damage during installation%u2022 Clear plastic gasket pre-fitted to the accessory to prevent tarnishing%u2022 All plate switches are X-rated and can be used for switching inductive or fluorescent loads without de-rating%u2022 Captive and backed out terminals with large cable lead-ins%u2022 Only one size 4mm screwdriver needed%u2022 25-year guarantee%u2022 BS EN 60669-1CH SSB WororFINISHwith INSERTSUltra Screwless Ordering GuideChrome, Stainless Steel or White Finish available with either Black or White InsertsWhen ordering products please indicate finish and insert preference by adding the suffixes shown above to the Part No.or WHUnswitchedSwitchedDimmer SwitchesPart No. Description8529 1g 250W Universal Dimmer Multiway8530 2g 250W Universal Dimmer Multiway%u2022 Ultra slim screwless metal profile%u2022 Universal dimmers suitable for use with dimmable LED lamps (requiring leading or trailing edge control), incandescent and halogen lamps or low voltage lighting%u2022 Suitable for loads up to 250W LED, 350W incandescent / halogen%u2022 Suitable for multiway dimming%u2022 Colour matched dimmer knob%u2022 Protective film on frontplate prevents damage during installation%u2022 Clear plastic gasket pre-fitted to the accessory to prevent tarnishing%u2022 Spare dimmer knobs available%u2022 2-year guarantee Connection UnitsPart No. Description8542 13A Switch Spur8543 13A Switch Spur Neon%u2022 Ultra slim screwless metal profile%u2022 Terminals have clear embossed and white printed markings%u2022 Lockable, captive fuse carrier for safety isolation%u2022 Clear plastic gasket pre-fitted to the accessory to prevent tarnishing%u2022 Captive and backed out, top facing, colour coded terminals with large cable lead-ins%u2022 Only one size 4mm screwdriver needed%u2022 Protective film on frontplate prevents damage during installation%u2022 25-year guarantee%u2022 BS 1363: Part 4Cooker Control UnitsPart No. Description8554 Cooker Control Unit Neon%u2022 Ultra slim screwless metal profile%u2022 Concave colour matched metal rockers with grey font switch markings%u2022 45A rated switch%u2022 Captive and backed out, top facing, colour coded terminals with large cable lead-ins and clear embossed and white printed markings%u2022 Clear plastic gasket pre-fitted to the accessory to prevent tarnishing%u2022 Two earth terminals%u2022 25-year guarantee%u2022 BS EN 60669-2-1
