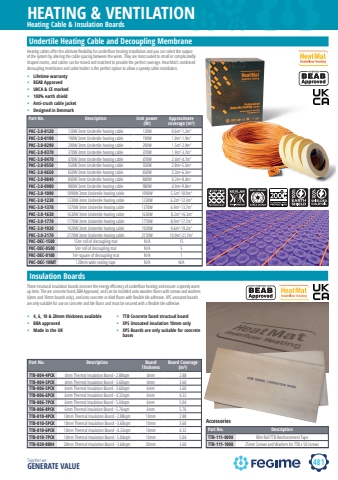

481HEATING & VENTILATIONTogether we GENERATE VALUEbeab approvedUndertile Heating Cable and Decoupling MembranePart No. Description Unit power (W)Approximate coverage (m%u00b2)PKC-3.0-0120 120W 3mm Undertile heating cable 120W 0.6m2-1.2m2PKC-3.0-0190 190W 3mm Undertile heating cable 190W 1.0m2-1.9m2PKC-3.0-0290 290W 3mm Undertile heating cable 290W 1.5m2-2.9m2PKC-3.0-0370 370W 3mm Undertile heating cable 370W 1.9m2-3.7m2PKC-3.0-0470 470W 3mm Undertile heating cable 470W 2.4m2-4.7m2PKC-3.0-0550 550W 3mm Undertile heating cable 550W 2.8m2-5.5m2PKC-3.0-0650 650W 3mm Undertile heating cable 650W 3.3m2-6.5m2PKC-3.0-0840 840W 3mm Undertile heating cable 840W 4.2m2-8.4m2PKC-3.0-0980 980W 3mm Undertile heating cable 980W 4.9m2-9.8m2PKC-3.0-1090 1090W 3mm Undertile heating cable 1090W 5.5m2-10.9m2PKC-3.0-1230 1230W 3mm Undertile heating cable 1230W 6.2m2-12.3m2PKC-3.0-1370 1370W 3mm Undertile heating cable 1370W 6.9m2-13.7m2PKC-3.0-1630 1630W 3mm Undertile heating cable 1630W 8.2m2-16.3m2PKC-3.0-1770 1770W 3mm Undertile heating cable 1770W 8.9m2-17.7m2PKC-3.0-1920 1920W 3mm Undertile heating cable 1920W 9.6m2-19.2m2PKC-3.0-2170 2170W 3mm Undertile heating cable 2170W 10.9m2-21.7m2PKC-DEC-1500 15m2 roll of decoupling mat N/A 15PKC-DEC-0500 5m2 roll of decoupling mat N/A 5PKC-DEC-0100 1m2 square of decoupling mat N/A 1PKC-DEC-10MT 120mm wide sealing tape N/A N/Abeab approvedInsulation BoardsPart No. Description Board ThicknessBoard Coverage (m%u00b2)TTB-004-4PCK 4mm Thermal Insulation Board - 2.88sqm 4mm 2.88TTB-004-5PCK 4mm Thermal Insulation Board - 3.60sqm 4mm 3.60TTB-006-5PCK 6mm Thermal Insulation Board - 3.60sqm 6mm 3.60TTB-006-6PCK 6mm Thermal Insulation Board - 4.32sqm 6mm 4.32TTB-006-7PCK 6mm Thermal Insulation Board - 5.04sqm 6mm 5.04TTB-006-8PCK 6mm Thermal Insulation Board - 5.76sqm 6mm 5.76TTB-010-4PCK 10mm Thermal Insulation Board - 2.88sqm 10mm 2.88TTB-010-5PCK 10mm Thermal Insulation Board - 3.60sqm 10mm 3.60TTB-010-6PCK 10mm Thermal Insulation Board - 4.32sqm 10mm 4.32TTB-010-7PCK 10mm Thermal Insulation Board - 5.04sqm 10mm 5.04TTB-020-0004 20mm Thermal Insulation Board - 3.60sqm 20mm 3.60Heating Cable & Insulation BoardsANTI-CRUSHHeating cables off er the ultimate fl exibility for underfl oor heating installation and you can select the output of the system by altering the cable spacing between the wires. They are most suited to small or complicatedly shaped rooms, and cables can be mixed and matched to provide the perfect coverage. Heat Mat%u2019s combined decoupling membrane and cable holder is the perfect option to allow a speedy cable installation.%u2022 Lifetime warranty %u2022 BEAB Approved%u2022 UKCA & CE marked %u2022 100% earth shield %u2022 Anti-crush cable jacket%u2022 Designed in DenmarkThese structural insulation boards increase the energy effi ciency of underfl oor heating and ensure a speedy warm up time. The are concrete faced, BBA Approved, and can be installed onto wooden fl oors with screws and washers (6mm and 10mm boards only), and onto concrete or tiled fl oors with fl exible tile adhesive. XPS uncoated boards are only suitable for use on concrete and tile fl oors and must be secured with a fl exible tile adhesive.%u2022 4, 6, 10 & 20mm thickness available %u2022 BBA approved %u2022 Made in the UK %u2022 TTB Concrete faced structual board%u2022 XPS Uncoated insulation 10mm only%u2022 XPS Boards are only suitable for concrete basesPart No. DescriptionTTB-111-0090 90m Roll TTB Reinforcement TapeTTB-111-1000 25mm Screws and Washers for TTB x 50 ScrewsAccessories
