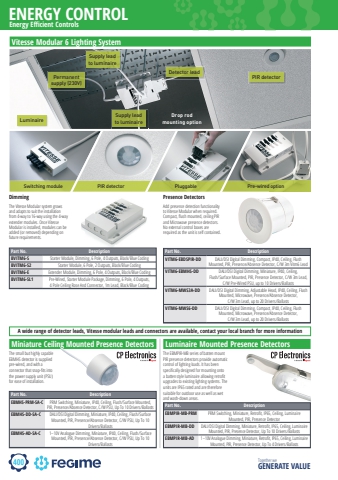

400ENERGY CONTROLTogether we GENERATE VALUEPart No. DescriptionBVITM6-S Starter Module, Dimming, 6 Pole, 4 Outputs, Black/Blue CodingBVITM6-S2 Starter Module, 6 Pole, 2 Outputs, Black/Blue CodingBVITM6-E Extender Module, Dimming, 6 Pole, 4 Outputs, Black/Blue CodingBVITM6-SL1 Pre-Wired, Starter Module Package, Dimming, 6 Pole, 4 Outputs, 4 Pole Ceiling Rose And Connector, 1m Lead, Black/Blue CodingPart No. DescriptionVITM6-EBDSPIR-DD DALI/DSI Digital Dimming, Compact, IP40, Ceiling, Flush Mounted, PIR, Presence/Absence Detector, C/W 3m Vitm6 LeadVITM6-EBMHS-DD DALI/DSI Digital Dimming, Miniature, IP40, Ceiling, Flush/Surface Mounted, PIR, Presence Detector, C/W 3m Lead, C/W Pre-Wired PSU, up to 10 Drivers/BallastsVITM6-MWS3A-DD DALI/DSI Digital Dimming, Adjustable Head, IP40, Ceiling, Flush Mounted, Microwave, Presence/Absence Detector, C/W 3m Lead, up to 20 Drivers/BallastsVITM6-MWS6-DD DALI/DSI Digital Dimming, Compact, IP40, Ceiling, Flush Mounted, Microwave, Presence/Absence Detector, C/W 3m Lead, up to 20 Drivers/BallastsSwitching module PIR detector Pluggable Pre-wired optionDrop rod Luminaire mounting optionDetector leadPIR detectorSupply lead to luminaireSupply lead to luminairePermanent supply (230V)20761 CP Elec Vitesse Images.indd 1 19/08/2021 09:44Energy Efficient ControlsVitesse Modular 6 Lighting SystemA wide range of detector leads, Vitesse modular leads and connectors are available, contact your local branch for more informationDimming Presence DetectorsThe Vitesse Modular system grows and adapts to suit the installation from 4-way to 16-way using the 4-way extender modules. Once Vitesse Modular is installed, modules can be added (or removed) depending on future%u0009requirements.Add presence detection functionality to%u0009Vitesse%u0009Modular%u0009when%u0009required.%u0009Compact,%u0009fl%u0009ush%u0009mounted,%u0009ceiling%u0009PIR%u0009and Microwave presence detectors. No external control boxes are required%u0009as%u0009the%u0009unit%u0009is%u0009self%u0009contained.Miniature Ceiling Mounted Presence Detectors Luminaire Mounted Presence DetectorsPart No. DescriptionEBMPIR-MB-PRM PRM%u0009Switching,%u0009Miniature,%u0009Retrofi%u0009t,%u0009IP65,%u0009Ceiling,%u0009Luminaire%u0009Mounted, PIR, Presence DetectorEBMPIR-MB-DD DALI/DSI%u0009Digital%u0009Dimming,%u0009Miniature,%u0009Retrofi%u0009t,%u0009IP65,%u0009Ceiling,%u0009LuminaireMounted, PIR, Presence Detector, Up To 10 Drivers/BallastsEBMPIR-MB-AD 1%u201310V%u0009Analogue%u0009Dimming,%u0009Miniature,%u0009Retrofi%u0009t,%u0009IP65,%u0009Ceiling,%u0009Luminaire%u0009Mounted, PIR, Presence Detector, Up To 4 Drivers/BallastsPart No. DescriptionEBMHS-PRM-SA-C PRM Switching, Miniature, IP40, Ceiling, Flush/Surface Mounted, PIR, Presence/Absence Detector, C/W PSU, Up To 10 Drivers/BallastsEBMHS-DD-SA-C DALI/DSI Digital Dimming, Miniature, IP40, Ceiling, Flush/Surface Mounted, PIR, Presence/Absence Detector, C/W PSU, Up To 10 Drivers/BallastsEBMHS-AD-SA-C 1%u201310V Analogue Dimming, Miniature, IP40, Ceiling, Flush/Surface Mounted, PIR, Presence/Absence Detector, C/W PSU, Up To 10 Drivers/BallastsThe small but highly capable EBMHS detector is supplied pre-wired, and with a connector%u0009that%u0009snap-fi%u0009ts%u0009into%u0009the power supply unit (PSU) for ease of installation.The EBMPIR-MB series of batten mount PIR presence detectors provide automatic control of lighting loads. It has been specifi%u0009cally%u0009designed%u0009for%u0009mounting%u0009onto%u0009a%u0009batten%u0009style%u0009luminaire%u0009allowing%u0009retrofi%u0009t%u0009upgrades to existing lighting systems. The units are IP65 rated and are therefore suitable for outdoor use as well as wet and wash-down areas.
