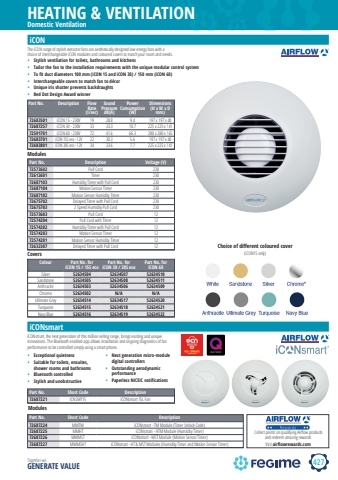

427HEATING & VENTILATIONTogether we GENERATE VALUEPart No. Description Flow Rate (l/sec)Sound Pressure dB(A)Power Consumption (W)Dimensions (H x W x D mm)72683501 iCON 15 - 230V 19 28.8 9.4 197 x 197 x 4072687257 iCON 30 - 230V 33 33.3 10.7 225 x 225 x 14172591701 iCON 60 - 230V 72 41.6 66.3 280 x 280 x 16572683701 iCON 15S eco - 12V 22 30.3 5.6 197 x 197 x 4072683801 iCON 30S eco - 12V 34 33.6 7.7 225 x 225 x 141iCON%u2022 Stylish ventilation for toilets, bathrooms and kitchens%u2022 Tailor the fan to the installation requirements with the unique modular control system%u2022 To fit duct diameters 100 mm (iCON 15 and iCON 30) / 150 mm (iCON 60)%u2022 Interchangeable covers to match fan to d%u00e9cor%u2022 Unique iris shutter prevents backdraughts%u2022 Red Dot Design Award winnerThe iCON range of stylish extractor fans are aesthetically designed low energy fans with a choice of interchangeable iCON modules and coloured covers to match your room and needs.ModulesPart No. Description Voltage (V)72573602 Pull Cord 23072612601 Timer 23072687103 Humidity Timer with Pull Cord 23072687104 Motion Sensor Timer 23072687102 Motion Sensor Humidity Timer 23072675702 Delayed Timer with Pull Cord 23072675703 2 Speed Humidity Pull Cord 23072573603 Pull Cord 1272574204 Pull Cord with Timer 1272574202 Humidity Timer with Pull Cord 1272574203 Motion Sensor Timer 1272574201 Motion Sensor Humidity Timer 1272632307 Delayed Timer with Pull Cord 12Colour Part No. for iCON 15 / 15S ecoPart No. for iCON 30 / 30S ecoPart No. for iCON 60Silver 52634504 52634507 52634510Sandstone 52634505 52634508 52634511Anthracite 52634503 52634506 52634509Chrome 52634502 N/A N/AUltimate Grey 52634514 52634517 52634520Turquoise 52634515 52634518 52634521Navy Blue 52634516 52634519 52634522Domestic VentilationCoversiCONsmartiCONsmart, the next generation of this million selling range, brings exciting and unique innovations. The Bluetooth enabled app allows installation and ongoing diagnostics of fan performance to be controlled simply using a smart phone.Part No. Short Code Description72687221 ICNSMT15 iCONsmart 15L FanPart No. Short Code Description72687224 MMTM iCONsmart - TM Module (Timer Unlock Code)72687225 MMHT iCONsmart - HTM Module (Humidity Timer)72687226 MMMST iCONsmart - MST Module (Motion Sensor Timer)72687227 MMMSHT iCONsmart - HT & MST Modules (Humidity Timer and Motion Sensor Timer)Modules%u2022 Exceptional quietness%u2022 Suitable for toilets, ensuites, shower rooms and bathrooms%u2022 Bluetooth controlled %u2022 Stylish and unobstructive %u2022 Next generation micro-module digital controllers%u2022 Outstanding aerodynamic performance %u2022 Paperless NICEIC notifications Collect points on qualifying Airfl ow products and redeem amazing rewards Visit airfl owrewards.comChoice of diff erent coloured cover(iCON15 only)
