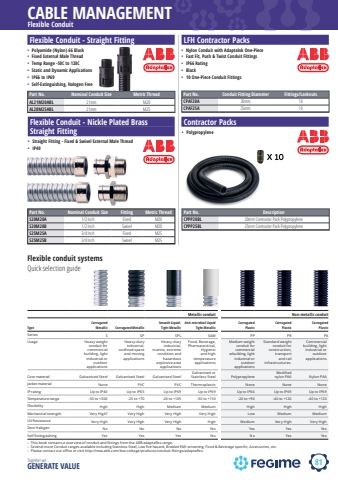

                                    81CABLE MANAGEMENTTogether we GENERATE VALUEPart No. Nominal Conduit Size Metric ThreadAL21M20ABL 21mm M20AL28M25ABL 21mm M25• Polyamide (Nylon) 66 Black • Fixed External Male Thread • Temp Range -50C to 120C • Static and Dynamic Applications• IP66 to IP69• Self-Extinguishing, Halogen FreeFlexible Conduit - Straight FittingPart No. Nominal Conduit Size Fitting Metric ThreadS20M20A 1/2 Inch Fixed M20S20M20B 1/2 Inch Swivel M20S25M25A 3/4 Inch Fixed M25S25M25B 3/4 Inch Swivel M25• Straight Fitting - Fixed & Swivel External Male Thread• IP40Flexible Conduit - Nickle Plated Brass Straight FittingPart No. Conduit Fitting Diameter Fittings/LocknutsCPAF20A 20mm 10CPAF25A 25mm 10• Nylon Conduit with Adaptalok One-Piece• Fast Fit, Push & Twist Conduit Fittings• IP66 Rating • Black• 10 One-Piece Conduit FittingsLFH Contractor PacksPart No. DescriptionCPPP20BL 20mm Contractor Pack Polypropylene CPPP25BL 25mm Contractor Pack Polypropylene • PolypropyleneContractor PacksFlexible ConduitFlexible conduit systemsQuick selection guideMetallic conduit Non-metallic conduitType Corrugated Metallic Corrugated MetallicSmooth LiquidTight MetallicAnti-microbial Liquid Tight MetallicCorrugated PlasticCorrugated PlasticCorrugated PlasticSeries S SP SPL SAM PP PR PAUsage Heavy weight conduit for commercial building, light industrial or outdoor applications Heavy-duty industrial, confined space and moving applications Heavy-duty industrial, marine, extreme condition and hazardous explosive area applicationsFood, Beverage, Pharmaceutical, Hygienic and high temperature applicationsMedium weight conduit for commercial wbuilding, light industrial or outdoor applications Standard weight conduit for construction, transport and rail infrastructures.Commercial building, light industrial or outdoor applicationsCore material Galvanised Steel Galvanised Steel Galvanised SteelGalvanised or Stainless Steel Polypropylene Modified nylon PA6 Nylon PA6Jacket material None PVC PVC Thermoplastic None None NoneIP rating Up to IP40 Up to IP65 Up to IP69 Up to IP69 Up to IP66 Up to IP69 Up to IP69Temperature range -50 to +300 -25 to +70 -20 to +105 -30 to +150 -20 to +90 -40 to +120 -40 to +120Flexibility High High Medium Medium High High HighMechanical strength Very High? Very High Very High Very High Low Medium MediumUV Resistance Very High Very High Very High High Medium Very High Very HighZero Halogen No No No Yes Yes Yes YesSelf Extinguishing Yes Yes Yes Yes No Yes Yes– This book contains a overview of conduit and fittings from the ABB adaptaflex range.– Several more Conduit ranges available including Stainless Steel, Low fire hazard, Braided EMI screening, Food & Beverage specific, Accessories, etc. – Please contact our office or visit http://new.abb.com/low-voltage/products/conduit-fittings/adaptaflex.
