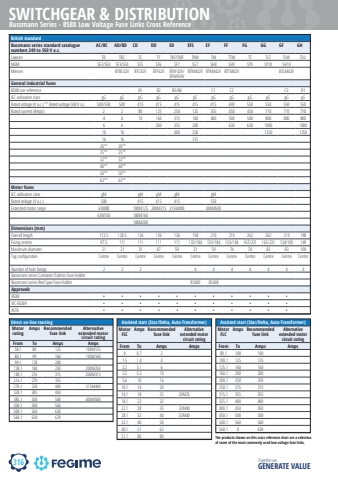

316SWITCHGEAR & DISTRIBUTIONTogether we GENERATE VALUEAll units are supplied with fuselinks or switchlinks fitted.Glasgow fuse switch disconnectors and switch disconnectors meet the constructional requirements for isolation of and are type tested to BS EN 60947-3. Five frame sizes are available to provide a range from 63A to 800A, with utilisation category AC22A and AC23A Ue 415V ratings. All units have retractable operating handles which drive overcentre mechanisms incorporating powerful operating springs. Flag “on-off” indication is provided and terminal cover shields prevent contact with live metal. Surface-mounting enclosures comprise heavy gauge steel body plates incorporating cast iron frame members and are rustprotected, with a light grey paint finish (RAL7004). Front access doors, which are detachable, are fitted with dust-excluding gaskets and are interlocked to prevent opening when the switch is ‘on’.Part No. Poles Utilisation Category at Ue 415V to BS EN 60947-3250V DC Rating to BS5419 DC23 (A)Blank EndplateAC22A (A) AC23A (A)- SPSN15AXD2 DP 20 11 201) EP 84215AXTN2 TPN- SPSN30AXD2 DP 32 22 32 -30AXTN2 TPN- SPSN 633960AXD2 DP - 63 EP 53960AXTN2 TPN- SPSN100-52100AXD2 DP 100 -100AXTN2 TPN125AXTN2 TPN 125 52 - -Exel 2 switch disconnectors and switch-disconnector fuses meet the constructional requirements for isolation of and are type tested to BS EN 60947-3. Switches are of the quick make and break type, suitable for use on AC or DC. Units have removable moving contact assemblies to facilitate wiring.Exel 2 surface-mounting enclosures are fabricated from rust-protected sheet steel with a light grey paint finish. Removable blank top and bottom end plates (except for 20 and 32A top end plates which incorporate knockouts) and gasket doors give IP41 protection. Chromium-plated front operated handles, with “ON (I) OFF (O)” indication, and internal fixing enabling units to be mounted closely side by side. Interiors comprise porcelain bases fitted with non-ferrous conducting components.Glasgow Fuse-Switch-Disconnectors & Switch-DisconnectorsSwitch Disconnectors* If DP fuse-switch-disconnectors are required, use SPSN and replace the supplied switch link with a compatible fuselink. Stud size: 63/100A = tunnel terminal, 160/200A = M10, 300/400 = M14, 500/800A = “copper terminal plate”SPSN indicates switched neutral. 1) 20A units are DC22.eatonPart No.Poles Nominal Unit Rating, Ie (A)For Switch Disconnector Add Solid LinksFor Fuse Switch Disconnector Add BothMotor Ratings AC23A Ue 415VkW HP Fuse TypeSolid Link61GN SPSN6363MLK (x2) BAO or AAO (x1) 63MLK (x1)22 3063GN TPN 63MLK (x3) BAO or AAO (x3)64G TPSN 63 MLK (x4) BAO or AAO (x3) 63MLK (x1)101GN SPSN100100MLK (x2) CEO (x1) 100MLK (x1)103GN TPN 100MLK (x3) CEO (x3)104GN TPSN 100 MLK (x4) CEO (x3) 100MLK (x1)203GN TPN200200MLK (x3) DD or CC or BD or AD (x3) 90 125204GN TPSN 200 MLK (x4) DD or CC or BD or AD (x3)200MLK (x1)403GN TPN400400MLK (x3) ED or DD or CC or BD or AD (x3)110 150404G TPSN 400 MLK (x4) ED or DD or CC or BD or AD (x3)400MLK (x1)603GN TPN 630 600MLK (x3) FF or EF (x3) 225 300803GN TPN 800 800 MLK (x3) GF or FF or EF (x3) 300 400Exel 2 Switch-Disconnectors & Switch-Disconnector Fuseseaton
