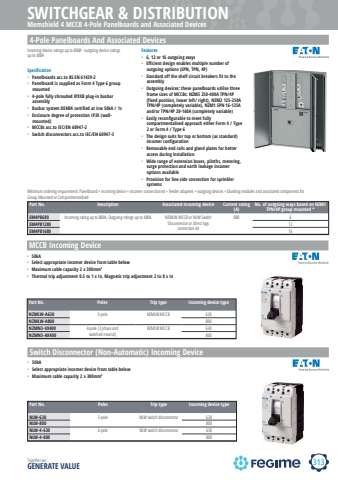

313SWITCHGEAR & DISTRIBUTIONTogether we GENERATE VALUEIncoming device ratings up to 800A - outgoing device ratings up to 400ASpecification%u2022 Panelboards acc.to BS EN 61439-2%u2022 Panelboard is supplied as Form 4 Type 6 group mounted%u2022 4-pole fully shrouded IPXXB plug-in busbar assembly%u2022 Busbar system DEKRA certified at Icw 50kA / 1s%u2022 Enclosure degree of protection IP3X (wallmounted)%u2022 MCCBs acc.to IEC/EN 60947-2%u2022 Switch disconnectors acc.to IEC/EN 60947-3Features%u2022 6, 12 or 16 outgoing ways%u2022 Efficient design enables multiple number of outgoing options (SPN, TPN, 4P)%u2022 Standard off the shelf circuit breakers fit to the assembly%u2022 Outgoing devices: these panelboards utilise three frame sizes of MCCBs: NZM3 250-400A TPN/4P (fixed position, lower left/ right), NZM2 125-250A TPN/4P (completely variable), NZM1 SPN 16-125A and/or TPN/4P 20-160A (completely variable)%u2022 Easily reconfigurable to meet fully compartmentalised approach either Form 4 / Type 2 or Form 4 / Type 6%u2022 The design suits for top or bottom (as standard) incomer configuration%u2022 Removable end rails and gland plates for better access during installation%u2022 Wide range of extension boxes, plinths, metering, surge protection and earth leakage incomer options available%u2022 Provision for line side connection for sprinkler systems4-Pole Panelboards And Associated DevicesPart No. Description Associated incoming device Current rating (A)No. of outgoing ways based on NZM1 TPN/4P group mounted *EM4PB680 Incoming rating up to 800A, Outgoing ratings up to 400A NZMLW MCCB or NLW Switch Disconnector or direct lugs connection kit800 6EM4PB1280 12EM4PB1680 16Minimum ordering requirement: Panelboard + incoming device + incomer connection kit + feeder adapters + outgoing devices + blanking modules and associated components for Group Mounted or CompartmentalisedPart No. Poles Trip type Incoming device typeNZMLW-A630 3-pole NZMLW MCCB 630NZMLW-A800 800NZMN3-VX400 4-pole (3 phase andswitched neutral)NZMLW MCCB 630NZMN3-AX400 800%u2022 50kA%u2022 Select appropriate incomer device from table below%u2022 Maximum cable capacity 2 x 300mm2%u2022 Thermal trip adjustment 0.5 to 1 x In, Magnetic trip adjustment 2 to 8 x InMCCB Incoming Device%u2022 50kA%u2022 Select appropriate incomer device from table below%u2022 Maximum cable capacity 2 x 300mm2Switch Disconnector (Non-Automatic) Incoming DeviceMemshield 4 MCCB 4-Pole Panelboards and Associated DevicesPart No. Poles Trip type Incoming device typeNLW-630 3-pole NLW switch disconnector 630NLW-800 800NLW-4-630 4-pole NLW switch disconnector 630NLW-4-800 800eatoneatoneaton
