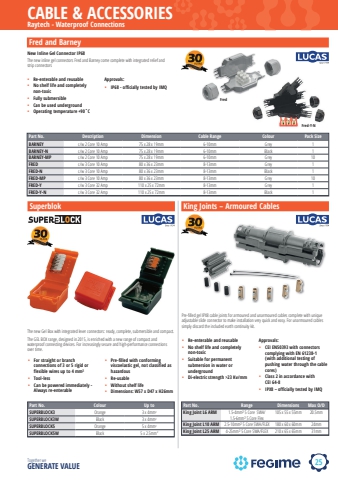

                                    25CABLE & ACCESSORIESTogether we GENERATE VALUERaytech - Waterproof ConnectionsKing Joints %u2013 Armoured CablesPart No. Range Dimensions Max O/DKing Joint L6 ARM 1.5-4mm%u00b2 5 Core SWA/1.5-6mm%u00b2 5 Core Flex105 x 55 x 55mm 20.5mmKing Joint L10 ARM 2.5-10mm%u00b2 5 Core SWA/FLEX 180 x 60 x 60mm 24mmKing Joint L25 ARM 4-25mm%u00b2 5 Core SWA/FLEX 210 x 65 x 65mm 31mm%u2022 Re-enterable and reusable%u2022 No shelf life and completely non-toxic%u2022 Suitable for permanent submersion in water or underground%u2022 Di-electric strength >23 Kv/mmApprovals:%u2022 CEI EN50393 with connectors complying with EN 61238-1 (with additional testing of pushing water through the cable cores)%u2022 Class 2 in accordance with CEI 64-8%u2022 IPX8 %u2013 officially tested by IMQSuperblokPart No. Colour Up toSUPERBLOCK3 Orange 3 x 4mm2SUPERBLOCK3W Black 3 x 4mm2SUPERBLOCK5 Orange 5 x 4mm2SUPERBLOCK5W Black 5 x 2.5mm2%u2022 For straight or branch connections of 3 or 5 rigid or flexible wires up to 4 mm%u00b2%u2022 Tool-less%u2022 Can be powered immediately - Always re-enterable%u2022 Pre-filled with conforming viscoelastic gel, not classified as hazardous%u2022 Re-usable%u2022 Without shelf life%u2022 Dimensions: W57 x D47 x H26mmPart No. Description Dimension Cable Range Colour Pack SizeBARNEY c/w 2 Core 10 Amp 75 x 28 x 19mm 6-10mm Grey 1BARNEY-N c/w 2 Core 10 Amp 75 x 28 x 19mm 6-10mm Black 1BARNEY-MP c/w 2 Core 10 Amp 75 x 28 x 19mm 6-10mm Grey 10FRED c/w 3 Core 10 Amp 80 x 36 x 23mm 8-13mm Grey 1FRED-N c/w 3 Core 10 Amp 80 x 36 x 23mm 8-13mm Black 1FRED-MP c/w 3 Core 10 Amp 80 x 36 x 23mm 8-13mm Grey 10FRED-Y c/w 3 Core 32 Amp 110 x 25 x 72mm 8-13mm Grey 1FRED-Y-N c/w 3 Core 32 Amp 110 x 25 x 72mm 8-13mm Black 1Fred and BarneyFredFred-Y-N%u2022 Re-enterable and reusable%u2022 No shelf life and completely non-toxic%u2022 Fully submersible%u2022 Can be used underground%u2022 Operating temperature +90%u02daCApprovals:%u2022 IP68 - officially tested by IMQNew Inline Gel Connector IP68The new inline gel connectors Fred and Barney come complete with integrated relief and strip connectorsThe new Gel Box with integrated lever connectors: ready, complete, submersible and compact.The GEL BOX range, designed in 2015, is enriched with a new range of compact and waterproof connecting devices. For increasingly secure and high-performance connections over time.Pre-fi lled gel IPX8 cable joints for armoured and unarmoured cables complete with unique adjustable slide connector to make installation very quick and easy. For unarmoured cables simply discard the included earth continuity kit.
