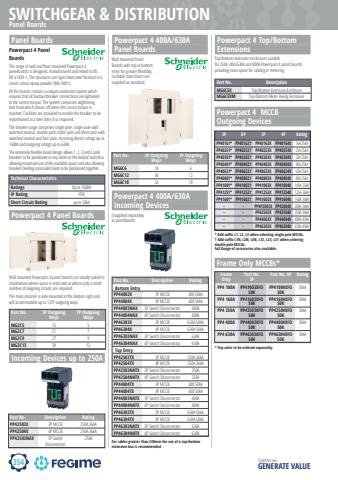

354SWITCHGEAR & DISTRIBUTIONTogether we GENERATE VALUEDistribution BoardsDistribution Boards• Manufactured and tested to BS EN 60439-3 Maximum busbar rating 125A• External IP3X protection to BS EN 60529• IP2XB finger safe with door and cover removed to BS EN 60529, provided by permanent, non removable, factory fitted barriers• Fully shielded neutral bars• Earth and Neutral bar capacity 25mm2• All incoming connections are the same length i.e. 4 pole configuration• Range of integral incomers for all applications including lugs, switches and RCDs• Outgoing MCBs available up to 63A B, C or D curves 18mm wide RCBOs available, minimising use of outgoing ways• Plug-on outgoers for speed of installation and reliable connection• All B boards accept DIN control products (timers, contactors) in any unused outgoing way without adaptation Control wiring cable way integrated to mouldingIncomers not included.Part No. Modules Dimensions H x W x D (mm)SE125A6 6 Modules 270 x 266 x 127SE125A8 8 Modules 270 x 321 x127SE125A12 12 Modules 270 x 376 x127SE125A16 16 Modules 270 x 456 x127SE125A24 24 Modules 500 x 376 x127LoadCentre iKQ Single Phase Type A 125A Distribution BoardsLoadcentre iKQ 125A Incoming DevicesIncoming device supplied separately to distribution board.Part No. Description RatingSE125SW2 DP Switch Disconnector 125ASED63032 DP RCD 63A 30mASED63102 DP RCD 63A 30mASED63302 DP RCD 63A 30mASED100032 DP RCD 100A 30mASED100102 DP RCD 100A 30mALoadCentre iKQ Type B Metering KitKit comprising of an extension box to be fitted to the LoadCentre KQ distribution board. Kit supplied fully fitted and wired. Components included in the kit are A9MEM3255 Multi-function meter provides V.A, Power factor kW/h, kYA/h & three current transformers.Part No. DescriptionSE250MET Multi-function Metering KitLoadCentre iKQ Three Phase Type B 250A Distribution BoardsIncomers not included.Part No. Modules Dimensions H x W x D (mm)SE12B250 4 Modules 754 x470 x139SE18B250 6 Modules 754 x470 x139SE24B250 8 Modules 808 x470 x139SE36B250 12 Modules 970 x470 x139SE48B250 16 Modules 1078 x470 x139SE54B250 18 Modules 1078 x470 x139SE72B250 24 Modules 1240 x470 x139Loadcentre iKQ 250A Incoming DevicesIncoming device supplied separately to distribution board.Part No. Description RatingSE250L4P FP Terminal Block 250ASE125SW3L TPN Switch Disconnector 125ASE160SW3L TPN Switch Disconnector 160ASE200SW3L TPN Switch Disconnector 200ASE250SW3L TPN Switch Disconnector 250ASE125SW4 FP Switch Disconnector 125ASE160SW4 FP Switch Disconnector 160ASE200SW4 FP Switch Disconnector 200ASE250SW4 FP Switch Disconnector 250ASE100QCB3L TPN MCCB 100ASE160QCB3L TPN MCCB 160ASE200QCB3L TPN MCCB 200ASE250QCB3L TPN MCCB 250ASE160QRCD FP RCD 160A 30mA• Manufactured and tested to BS EN 60898• 10kA breaking capacity• Let through energy classification of 3 (lowest let through energy giving best cable protection classification)• Positive contact indication (guaranteed on/off indication)• Trip free mechanism operates even when the toggle is locked on• Lockable in the ON or OFF position• Speed of connection of Plug-On devices - guaranteed connection Plug-On devices• For use in LoadCentre KQ A and B boardsLoadcentre iKQ Type B Miniature Circuit BreakersPart No. RatingSE10B106 6A 10kASE10B110 10A 10kASE10B116 16A 10kASE10B120 20A 10kASE10B132 32A 10kASE10B140 40A 10kASE10B150 50A 10kASE10B163 63A 10kAMiniature Circuit BreakersLoadcentre iKQ Type C Miniature Circuit BreakersPart No. SP Part No. TP RatingSE10C106 SE10C306 6A 10kASE10C110 SE10C310 10A 10kASE10C116 SE10C316 16A 10kASE10C120 SE10C320 20A 10kASE10C125 SE10C325 25A 10kASE10C132 SE10C332 32A 10kASE10C140 SE10C340 40A 10kASE10C150 SE10C350 50A 10kASE10C163 SE10C363 63A 10kALoadcentre iKQ Type D Miniature Circuit BreakersPart No. TP RatingSE10D310 10A 10kASE10D316 16A 10kASE10D320 20A 10kASE10D332 32A 10kASE10D340 40A 10kASE10D350 50A 10kASE10D363 63A 10kA
